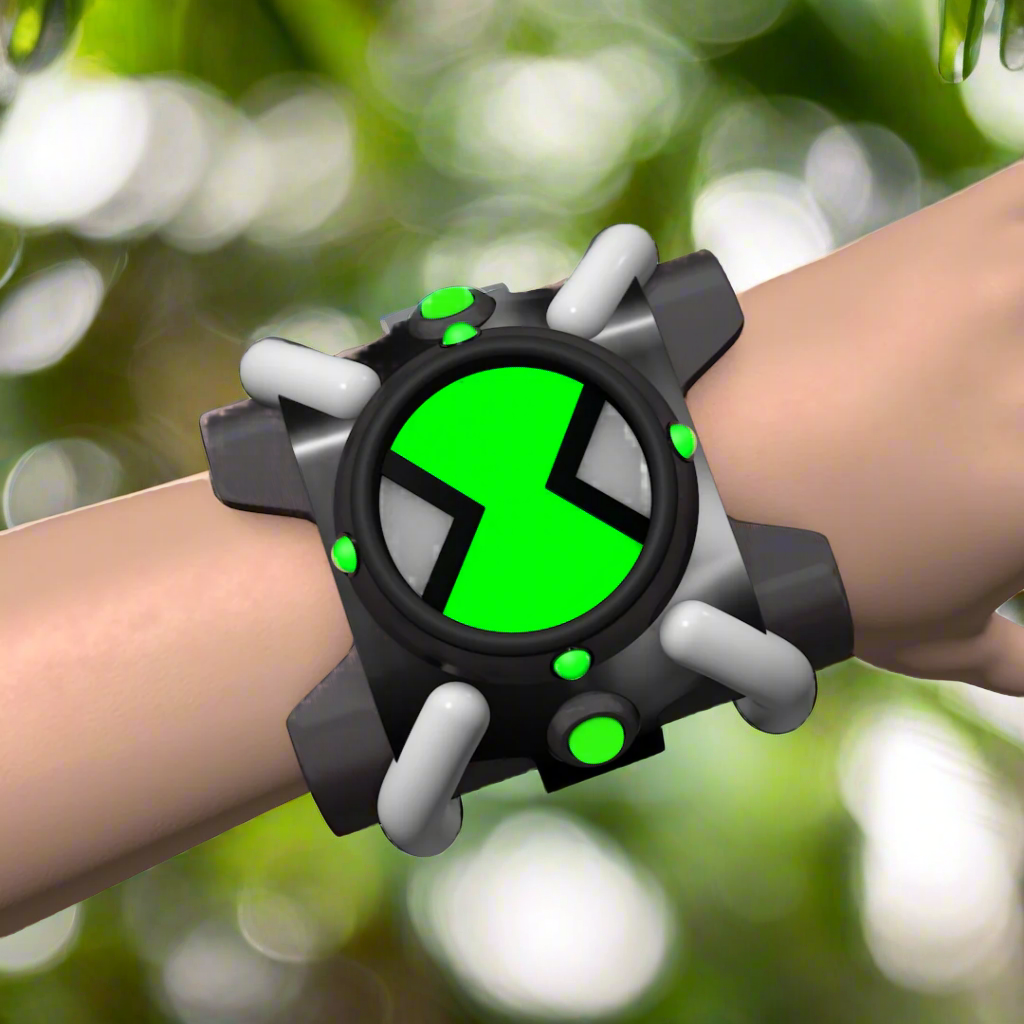

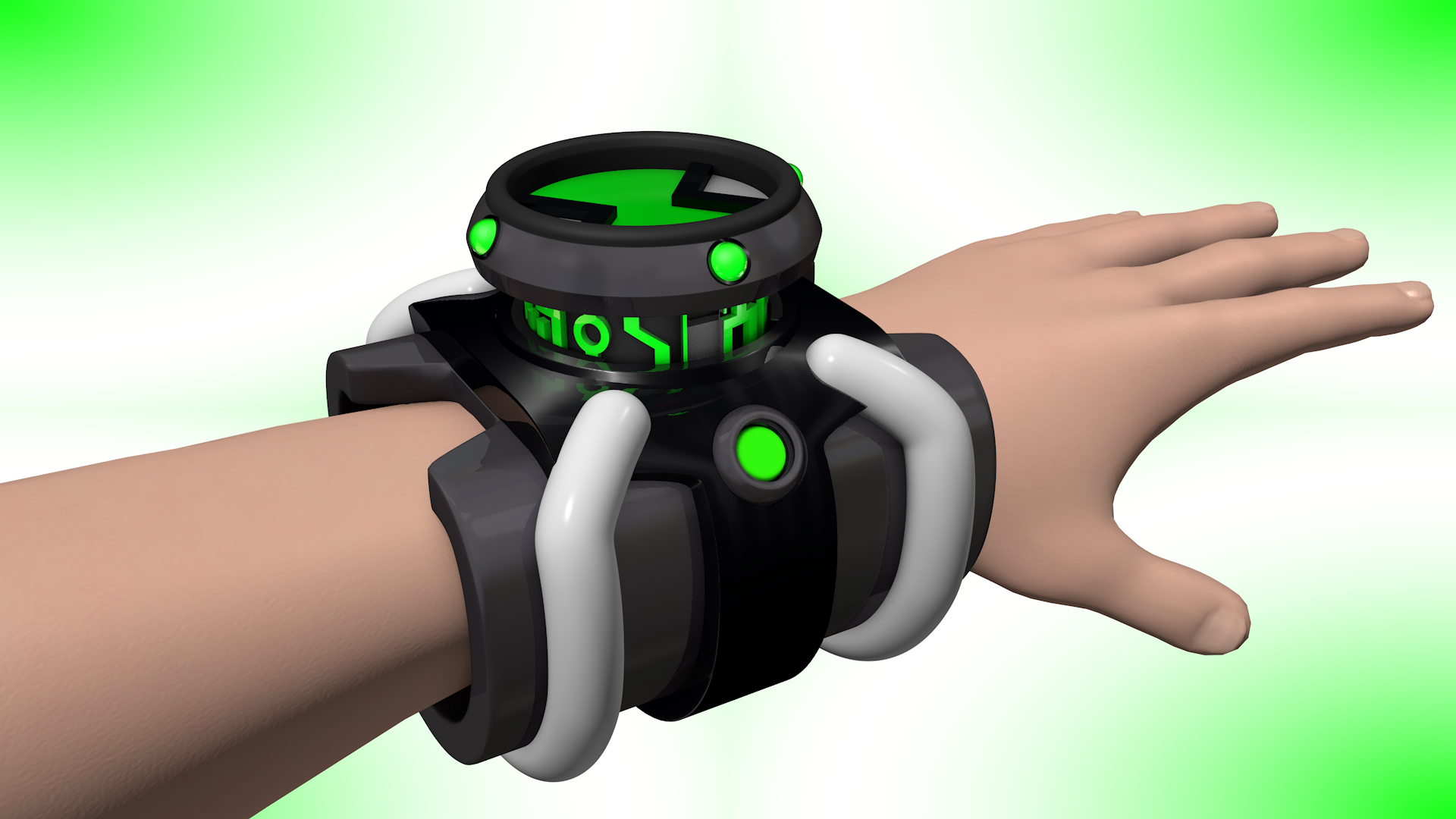

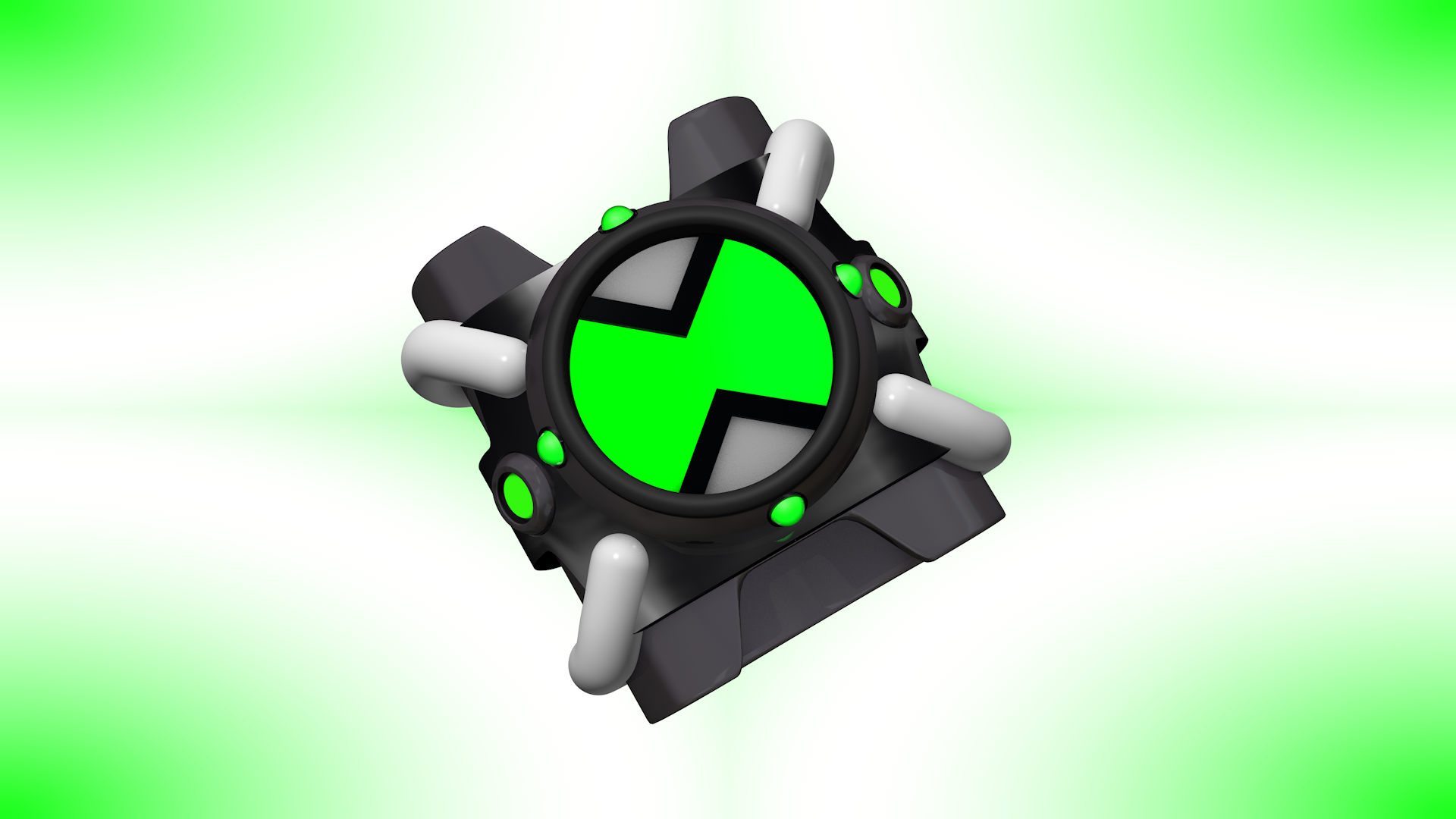

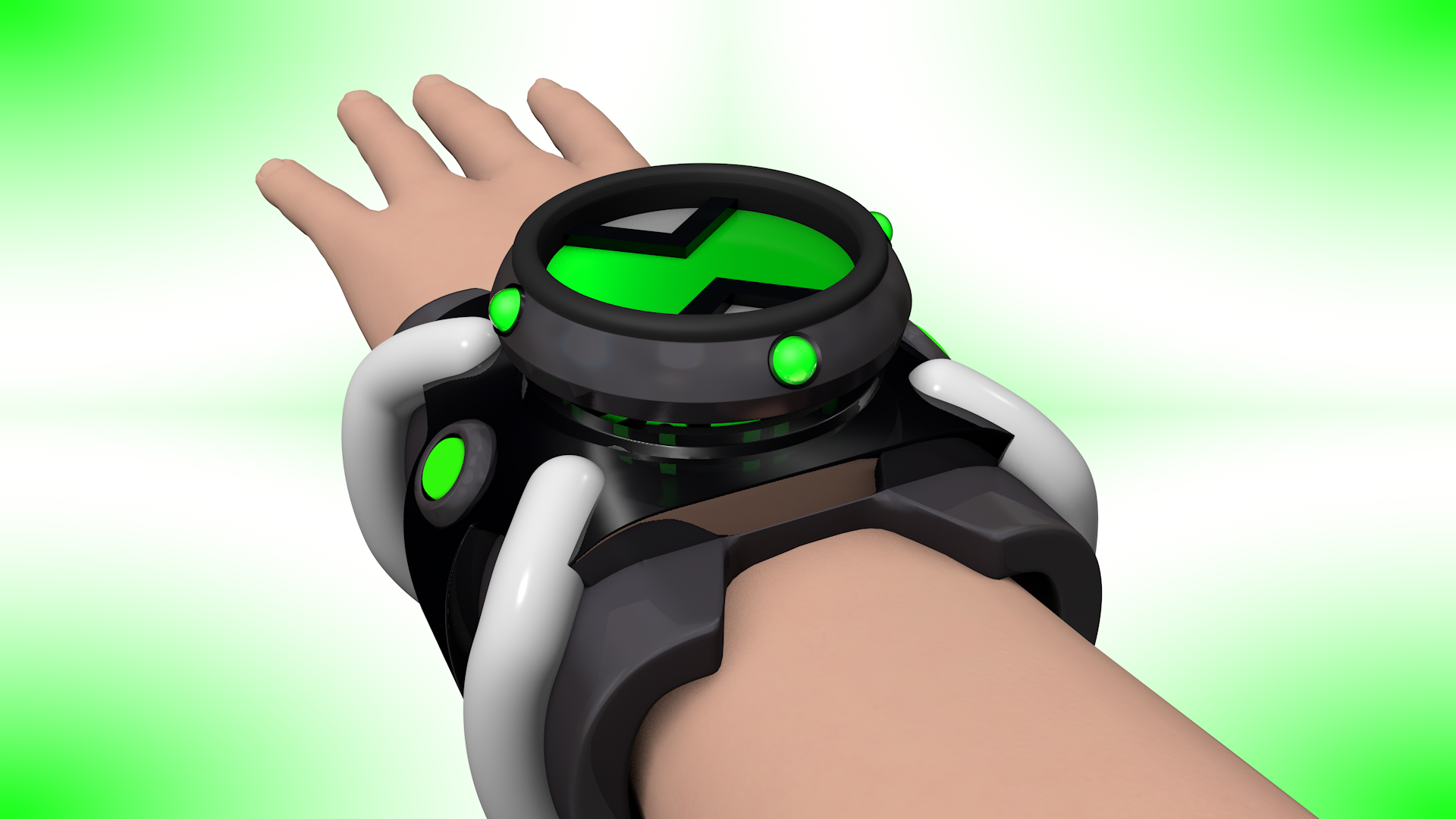

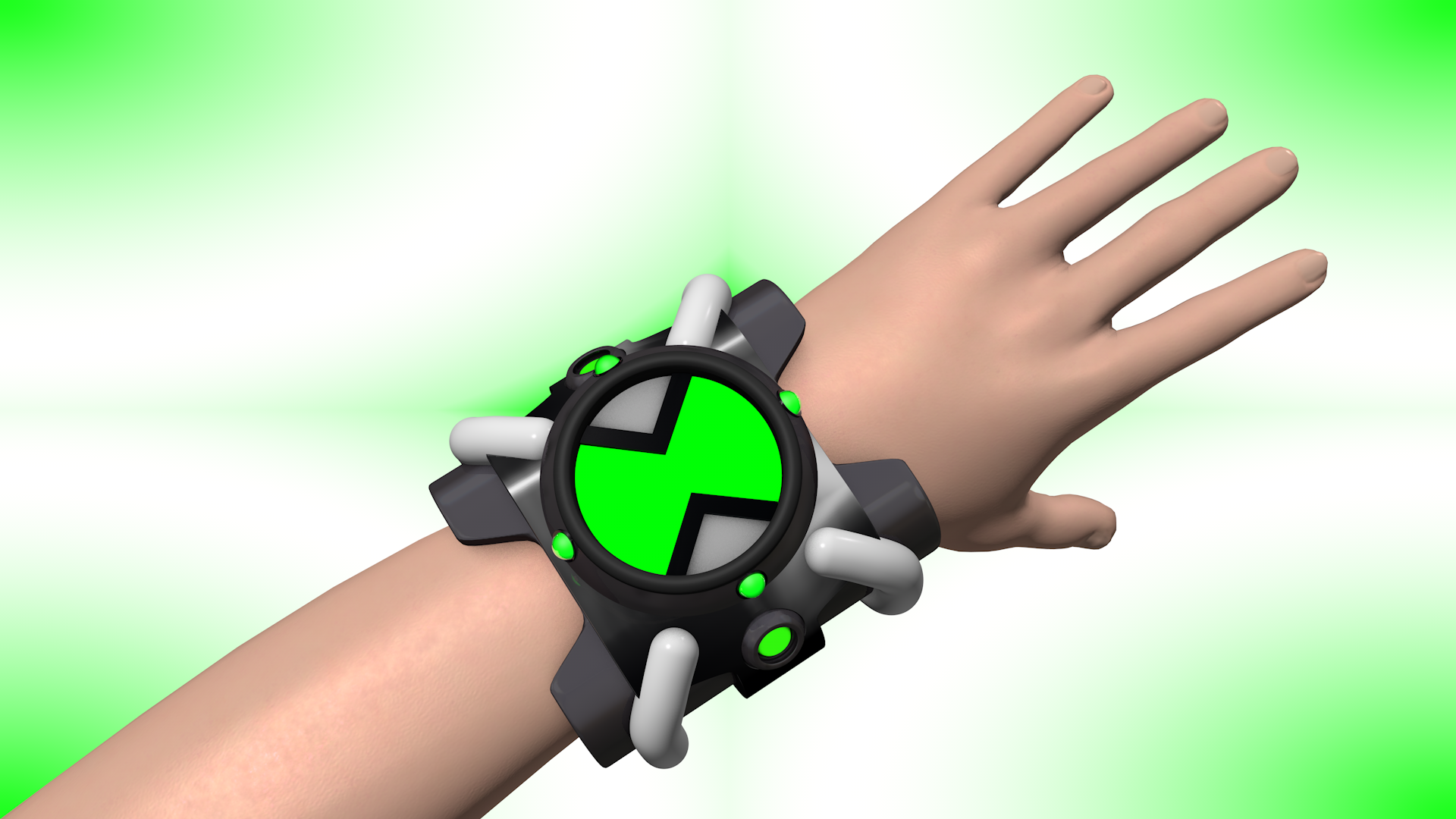

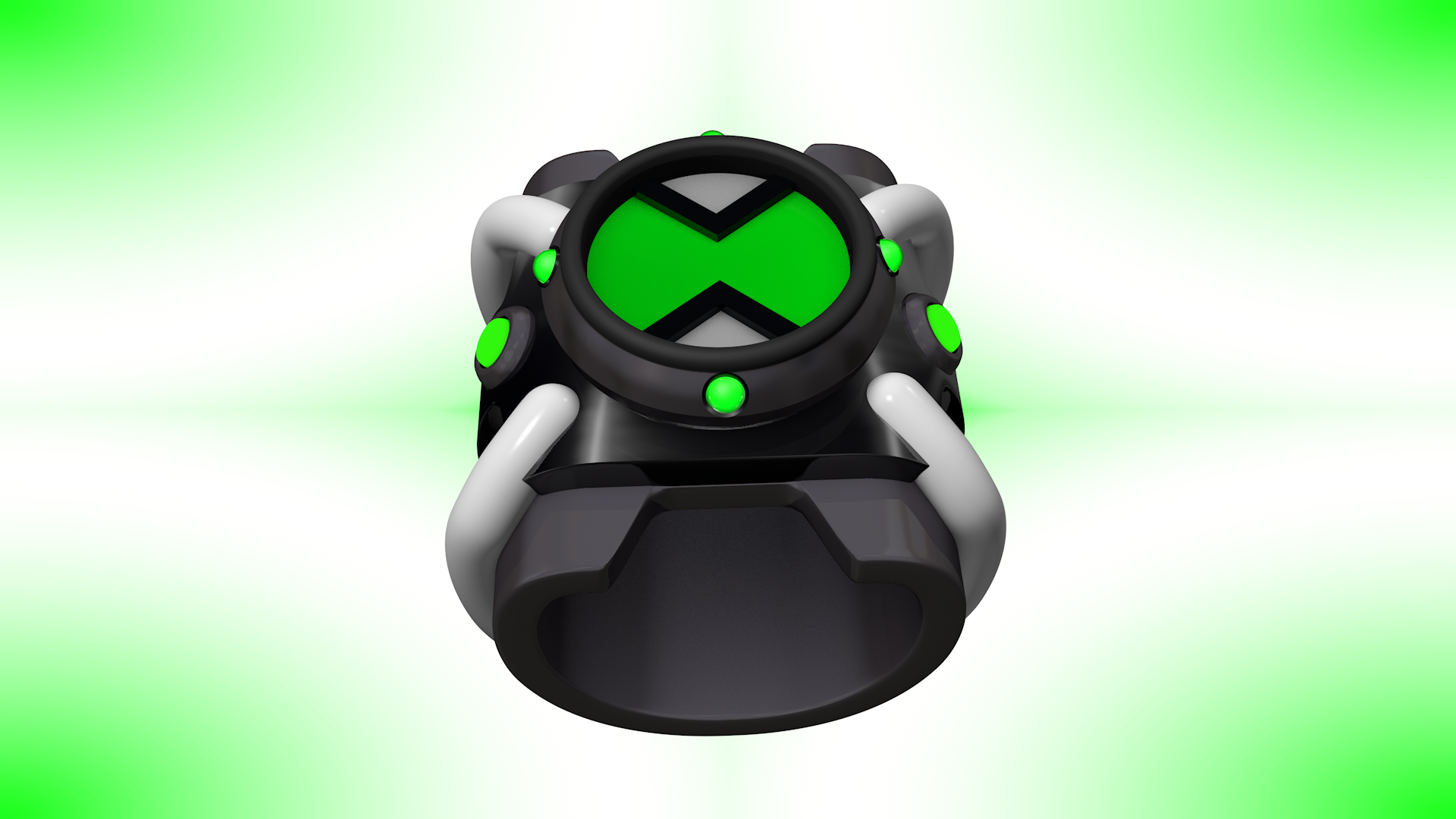

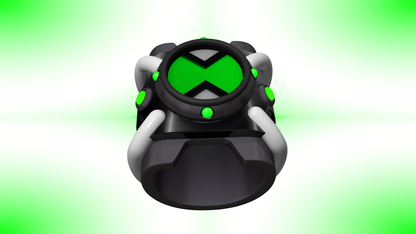

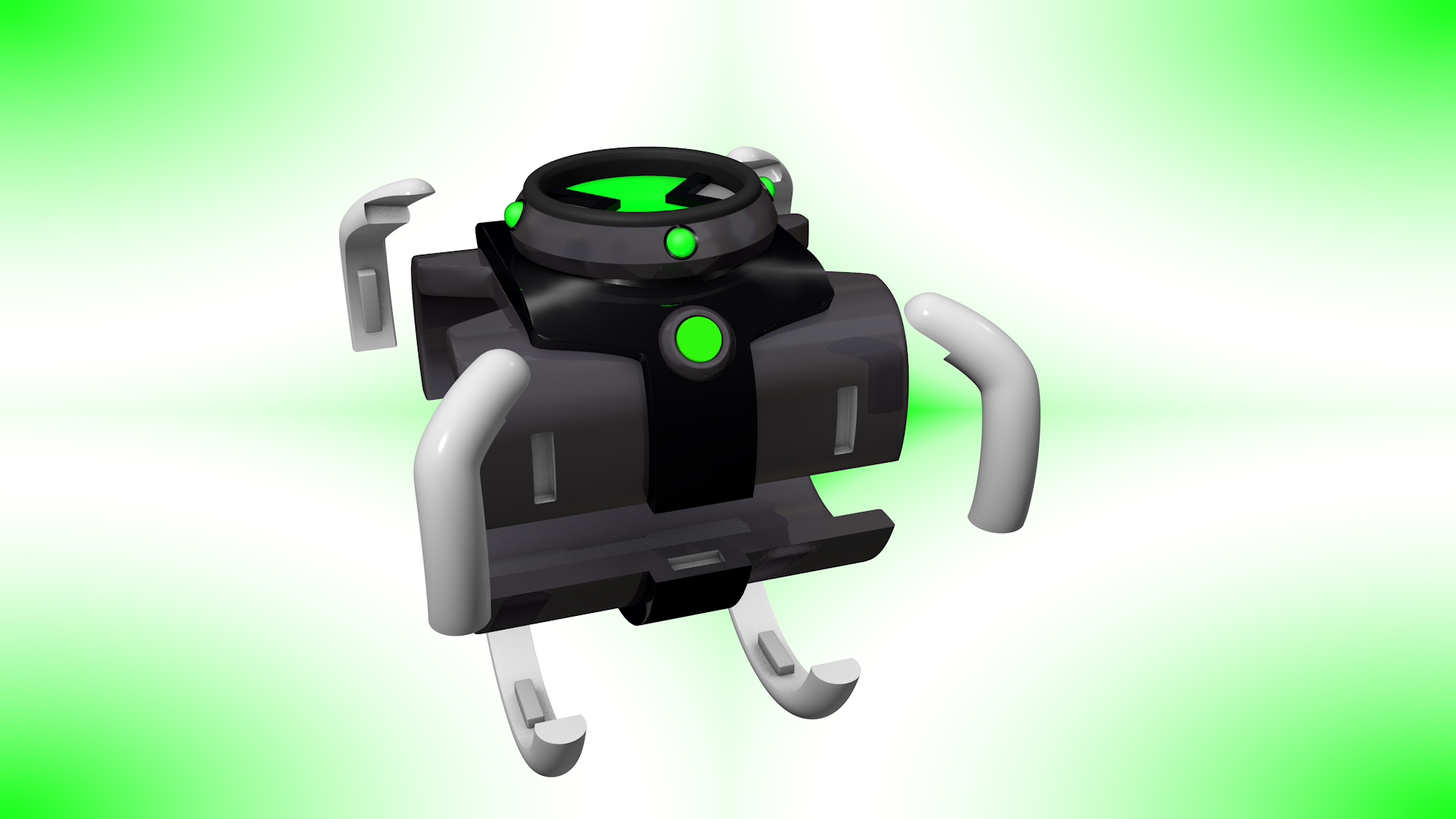

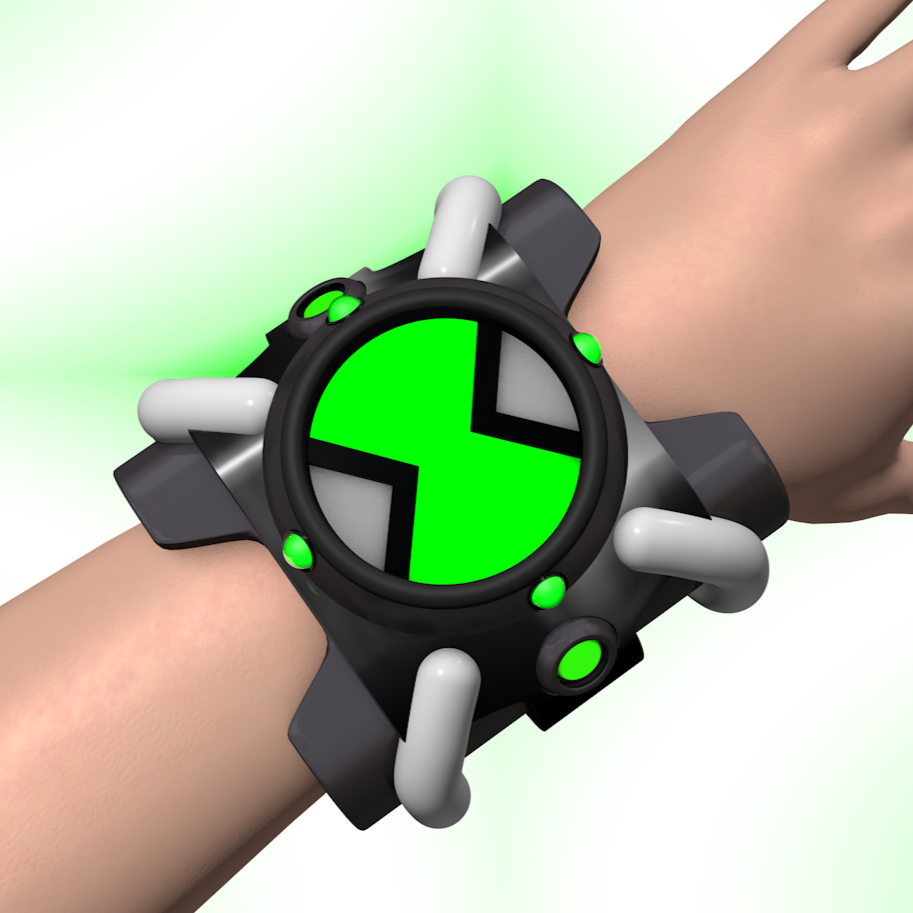

Hey guys ,New Pop up model for ben 10 Omnitrix ,with dual button - you need to press the button on both sides to make it pop up...
.
IMPORTANT - Multiple wrist size files available , Dont Scale any files ,
ASSEMBLY VIDEO ADDED
Material Requirements :~
Material Required (Refence link attached)
Brass Threads
1]2x6 mm ----- 2pcs
2]3x3 or 3x4 mm-------12pcs
3] 3x5--- 4 pcs
link - https://a.co/d/0O1pFkb
CSK or Pan head screws
1]2x8 mm ----- 2pcs (faceplate)
2]3x6 mm-------4pcs (back plate)
3]3x8 mm-------12pcs (tubes)
link - https://a.co/d/3ohrUwI
Magnets
1] 8x3 mm --- 8pcs (N52 or N42 magnets)
OR
2) 8x1.5 mm ----- 16 pcs
link - https://a.co/d/1utxVRT
Springs
1] 9.5x19 mm ---1 pc
2] 5.5x10 mm --- 2pcs (for pressing buttons) (spring can be cutted correctly - check video)
buy link for spring -https://a.co/d/fjKf7F0
3D printing settings
Print files in zip file ,
x2 on the file name represent print the part twice
align the models for printing
USE TREE SUPPORT
